Precision bare tip fibers that direct laser energy at soft tissue during contact and non-contact minimally invasive procedures — for better precision, control and patient outcomes.

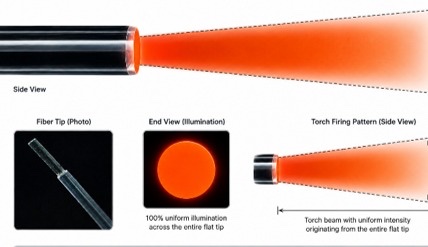

OptiVein is a surgical laser bare fiber compatible with SMA 905 and FC connectors, tailored for directing laser energy at soft tissue. The beam emitted from the bare fiber surface forms a controlled three-dimensional cone (“torch firing”), enabling incision, excision, tissue dissection, vaporization, hemostasis and coagulation.
Each fiber is built in three layers — core, cladding and jacket — from low-OH silica. The jacket is stripped 5–6 mm at the distal end to expose the bare cladding and core for precise energy direction.
The same precision fiber, offered with your choice of industry-standard connector.

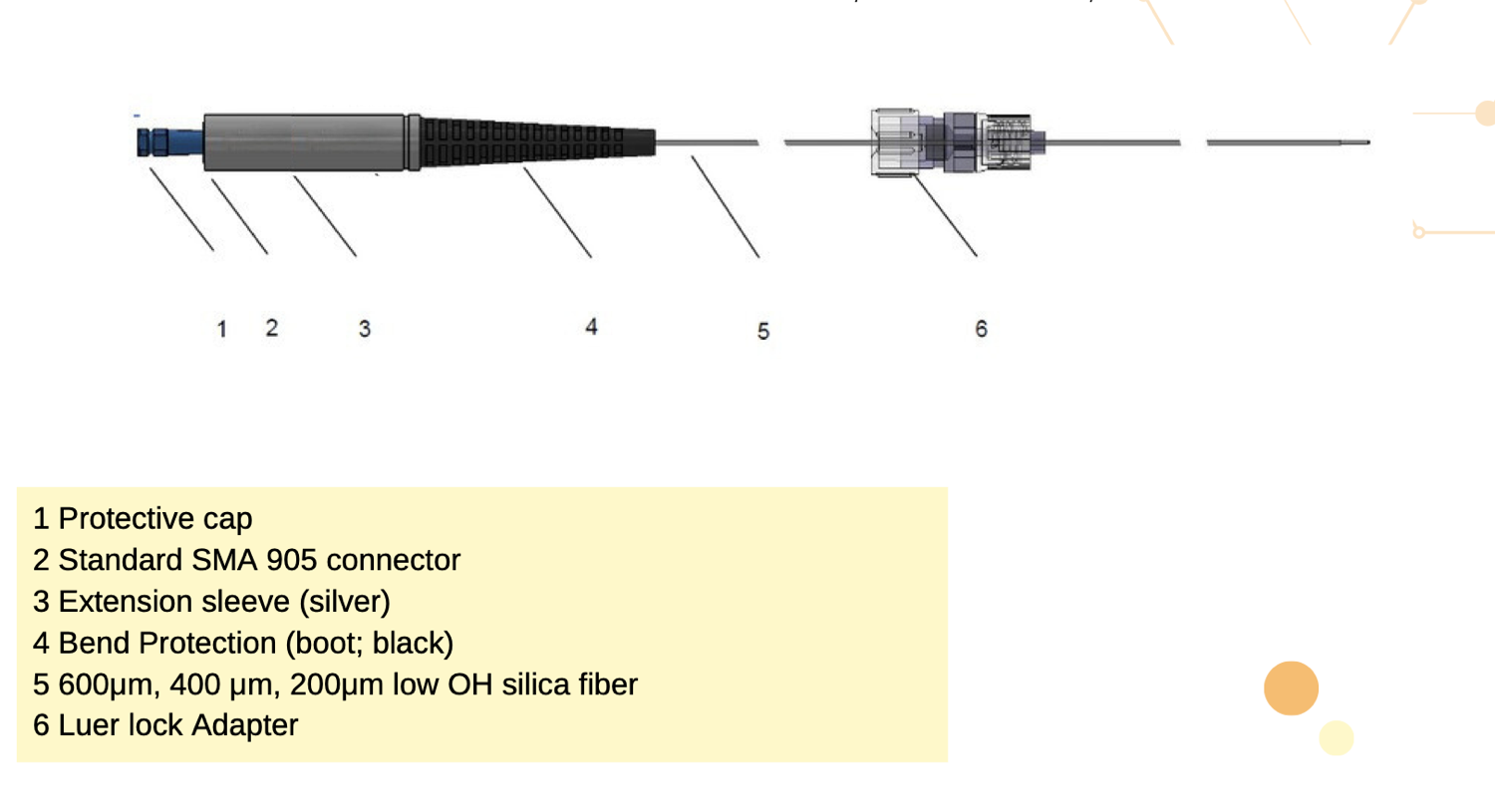

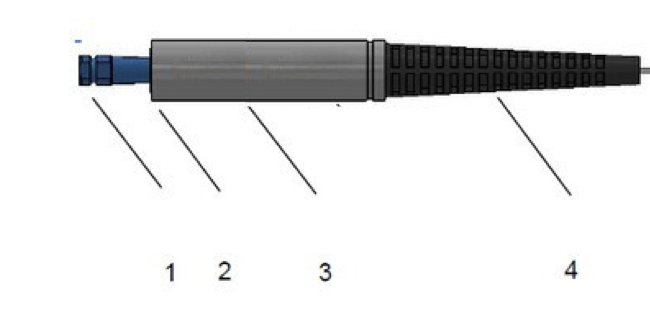

Surgical bare tip fiber with the robust, widely adopted SMA 905 connector — easy to couple and compatible with most diode laser sources.

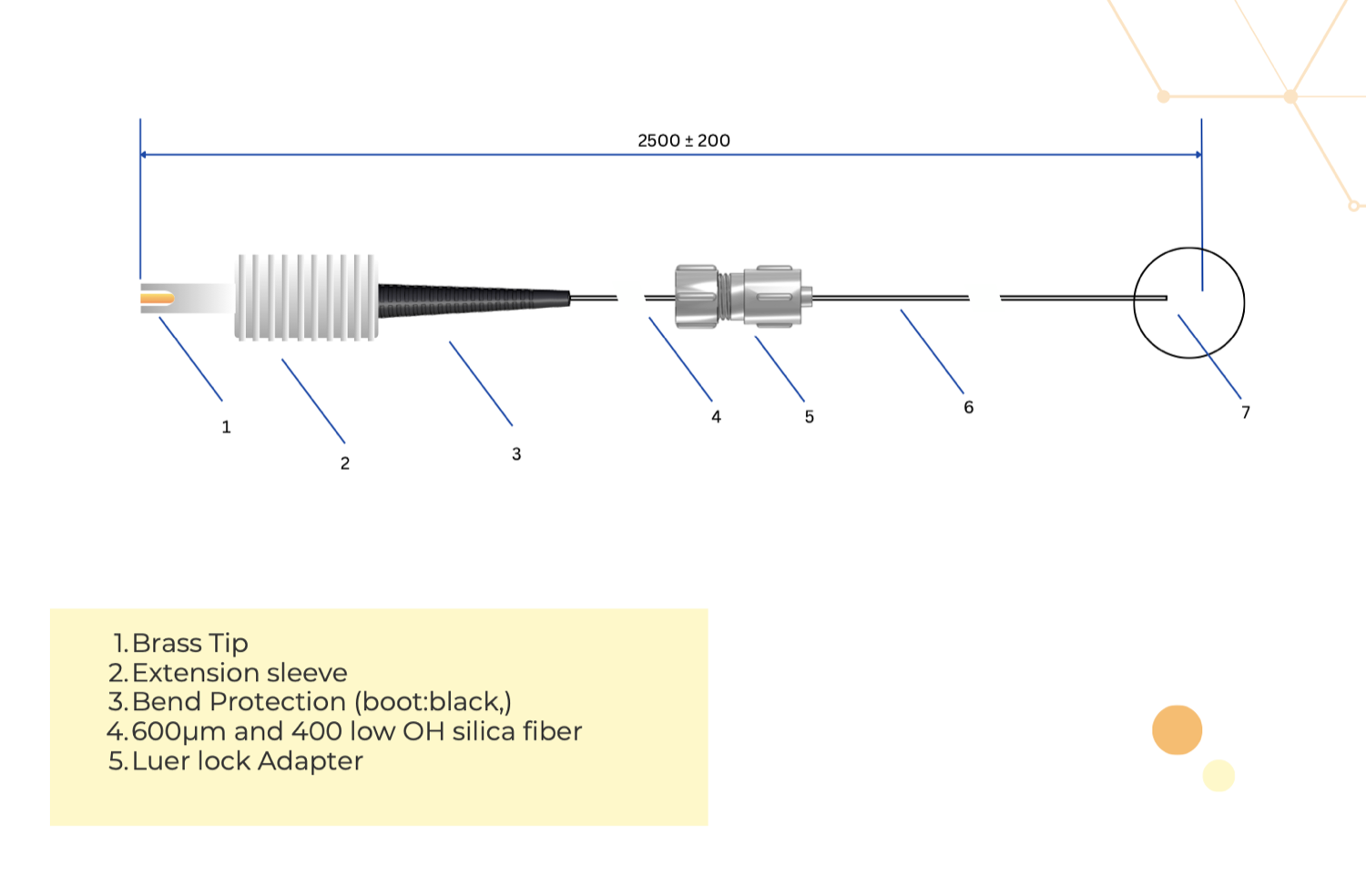

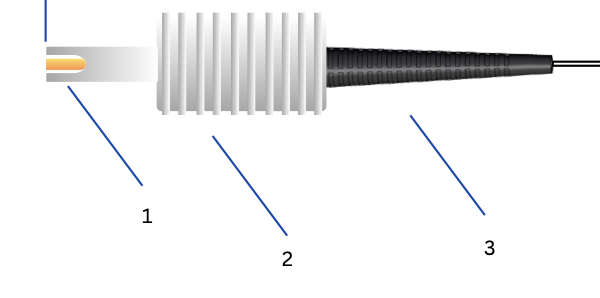

Surgical bare tip fiber with the threaded FC connector for a secure, precise and repeatable optical connection.
A 2.5 m assembly engineered for reliable handling and precise distal delivery — available with FC or SMA 905 connectors.
| Parameter | 200 µm | 400 µm | 600 µm |
|---|---|---|---|
| Core Ø | 200 µm ± 2% | 400 µm ± 2% | 600 µm ± 2% |
| Cladding Ø | 230 µm ± 2% | 430 µm ± 2% | 630 µm ± 3% |
| Buffer Ø | 530 µm ± 2% | 730 µm ± 2% | 950 µm ± 5% |
| Numerical aperture | 0.22 / 0.37 | 0.22 / 0.37 | 0.22 / 0.37 |
| Buffer material | Tefzel | Tefzel | Tefzel |
| Fiber type | Bare tip, low-OH silica |
| Connectors | SMA 905 · FC |
| Overall length | 2.5 m ± 0.2 m |
| Distal end | Flat fiber tip |
| Laser type | Diode |
| Wavelength range | 440 – 2200 nm |
| Power (peak / CW) | 1 – 300 W |
| Manufacturing | Made in India · ISO 13485 / ICMED |
OptiVein’s versatility across wavelengths and powers makes it suitable for a wide range of specialities.
Endovenous Laser Ablation closes diseased varicose veins via laser energy delivered through the distal bare tip.
400 µm fibers treat incompetent perforator veins through minimally invasive ablation.
Laser treatment of haemorrhoidal nodes, applied internally through the anal canal or rectum.
Percutaneous Laser Disc Decompression for herniated intervertebral discs using 400/600 µm fibers.
600 µm fibers support safe laser surgery for twin-to-twin transfusion syndrome.
BPH, kidney stones and urethral strictures — precise energy delivery to complex anatomy.
Laryngeal, otologic and head & neck procedures with controlled energy and minimal collateral damage.
Soft tissue procedures, teeth whitening, endodontic procedures and laser removal.
Targeted cyst removal and cosmetic dermatology — scar, vascular and skin resurfacing treatments.
From prototype to mass production, we tailor OPTIVEIN fibers to your exact surgical requirements.
